Window Patching Machine ZKT-700B ZKT-1080B

Window Patching Machine ZKT-700B, ZKT-1080B

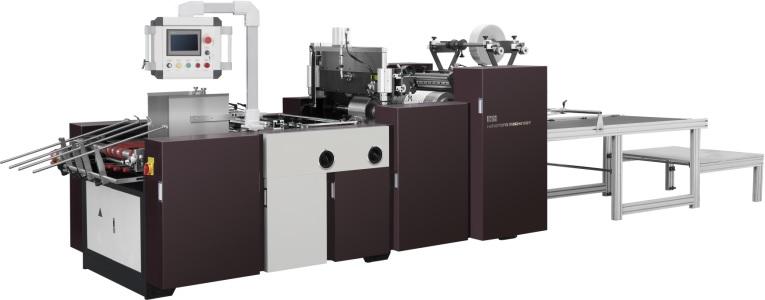

ZKT-1080B window patching machine can be extensively used in sticking window and line pressing functions.

Structure Characteristic

Paper Feeding

The paper feeder use the point pattern by servo motor, so it now no need to adjust paper length by hand, thus making paper feeding easy, quick and accurate. It applies to card paper and corrugated paper.

The paper and film feeding sections are equipped with a chain guide imported from Germany and a linear guide imported from Taiwan, and other accessories, which helps improve film patching accuracy and reduce noise.

Film Feeder & Cutting

Film feeding part is controlled by imported servo system, input the need film’s length on the touch screen, saving the adjust time and highly position.

The film cutting and the film patching part install free axial rotation, is used for various shape and position of paper window, saving the adjust time, greatly improve the production efficiency.

The gluing section

The gluing section consists of chromed sizing roller, glue separating guide, side limiter and sizing template roller. It is easy to pull out, set and clean the sizing section.

The glue separating guide can be adjusted to control the range and amount of glue. In the event of shutdown, the cylinder can raise the sizing roller and it is driven by the other independent motor to avoid glue solidification.

With out shutdown, the printing roller can be adjusted freely on and axial or radial basis.

Function

Based on the original mechanism, the layout of each section of this product has been improved in order to reduce the adjusting time, so it becomes more efficiency and friendly.

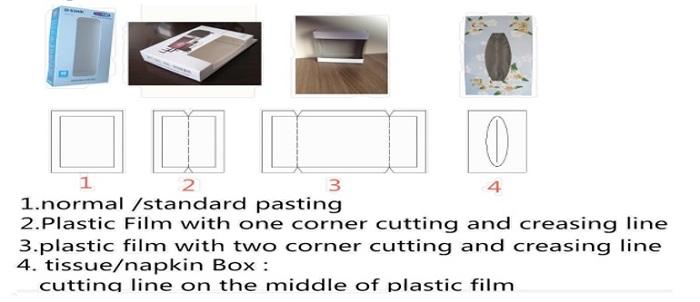

ZKT-1080B is widely used for 90 degree angle window sample, has the function of angle cutting and creasing. Also normal pasting and tissue box of cutting the line on the film.

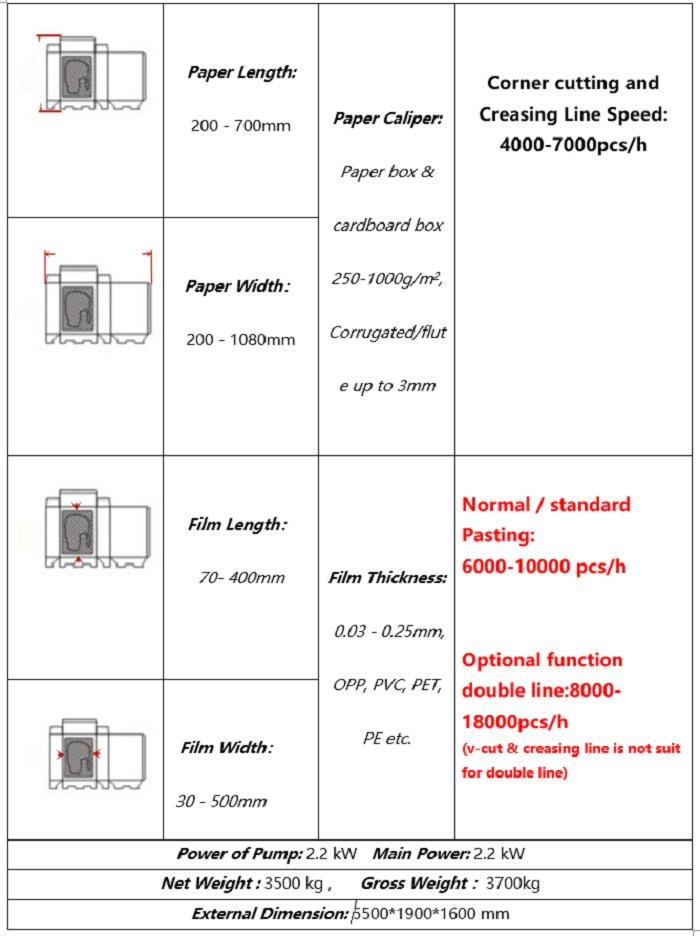

Technical Parameters

ZKT-700B window patching machine

ZKT-1080 window patching machine

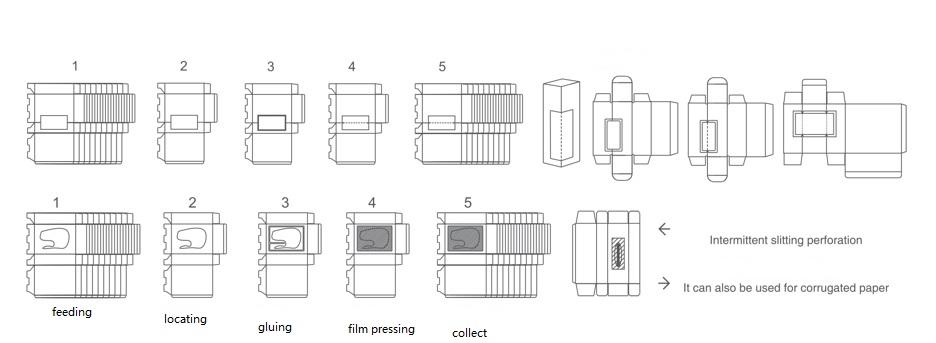

Process Flow

Electrical Configuration

Servo Motor: Yaskawa/Dorna

Relay: Omron

PLC: Panasonic

Touch Screen: Kunluntongtai

Frequency: Toshiba

Power/Switch Switch: Schneider
