Characteristics
|
Model
|
SHH-800AK
Automatic Pre-fold & Lock Bottom Folder Gluer Machine
|
|
Paper
Material
|
Cardboard
200-800 gsm, E- flute, F flute
|
|
Max.
Liner Speed
|
Max.
300 meter/ minute
|
|
Feeding
Way
|
Automatically
and Continuously Feeding
|
|
Way
of Folding
|
Fold
1 and fold 3 are 180°and
135°.
Fold
2 and fold 4 are 180°.
Bottom
folded and glued.
|
|
Glue
Material
|
Water-base
cold glue.
|
|
Electric
Power
|
20kW,
380V, 50Hz, 3phase
|
|
Weight
|
4500kgs
|
|
Over
Dimension
|
12500x1500x1400mm
|
Technical
Parameter
|
Lock
Bottom Carton Type and Size
|
|
Model
|
SHH-800AK
|
|
Material
|
Carboard
|
E
/ F Corrugated Paper
|
|
A+B+C+D
|
200-750mm
|
|
C+D
Min.
|
100mm
|
|
D
Min.
|
25mm
|
|
F
Min.
|
70mm
|
|
G
|
150-600mm
|
|
H
|
25mm
|
|
Flat
Box Type and Size
|
|
Model
|
SHH-800AK
|
|
Material
|
Carboard
|
E
/ F Corrugated Paper
|
|
A+B+C+D
|
180-780mm
|
|
C+D
Min.
|
90mm
|
|
D
Min.
|
8mm
|
|
F
Min.
|
50mm
|
|
G
|
150-700mm
|
|
Two-side
Gluing Box Type and Size
|
|
Model
|
SHH-800AK
|
|
A
|
100-550mm
|
|
B
|
100-700mm
|
|
C
|
70-600mm
|
|
D
|
10-200mm
|
Feature
Introduction
Feeding
Adjustable
feeding belts to ensure easy adjustment, stable and smoothly feeding.
Continuously
variable speeder to ensure feeding internal and stable transmission.
One-touch
pneumatic knife, easy for the adjustment of feeding belts.
Alignment
The
paper board sent from feeder section will be corrected by aligner
section to ensure transmission accurately.
Pressing
drive pressure can be adjusted up and down to accommodate different
paper board thickness.
Bottom-lock
3-board
tracing structure, upper gluer can make bottom-locked box automatic
gluing and forming, can be used for the special-shaped cartons. The
entire bottom-lock part is installed in a reversible bracket,
substantially reduce the swap adjustment time of bottom-fold box and
the other types of box, Bottom-folding speed is 50-200pcs per min,
stable and reliable.
Folding
The
Second and fourth line 180°.
Folding
and closing section transmit from right and left side, the belt speed
can be adjusted separately and correct the way ofbox running to
ensure straightly delivery.
Full
Pressing
Up
and down belt can be adjusted separately. Equipped with photo
electronic counting device and kicking paper device, which can press
the paper after accounting and make it easy to pack. Also equipped
with feeding paper inspection device.
Transmission
Equipped
with feeding paper inspection device.
Equipped
with impacting device to press the paper after accounting and make it
easy to pack paper.
Spraying
System (water-base cold)
For
irregular box, need extra spraying system.
Equipped
with three guns, convenient in the production various special box,
gluing quickly and accurately sizing.
The
Grinding Part
More
effective treatment of paper surface UV, the carton adhesive
stronger.
Linear
Slider
Replacement
of conventional screws with high-precision linear guide rails.
-smooth
and stable: motion with minimal friction
-longer
lifespan and reduced maintenance
-higher
rigidity for improved box-forming accuracy.
Servo
Motor
Make
the machine run faster and more stable.

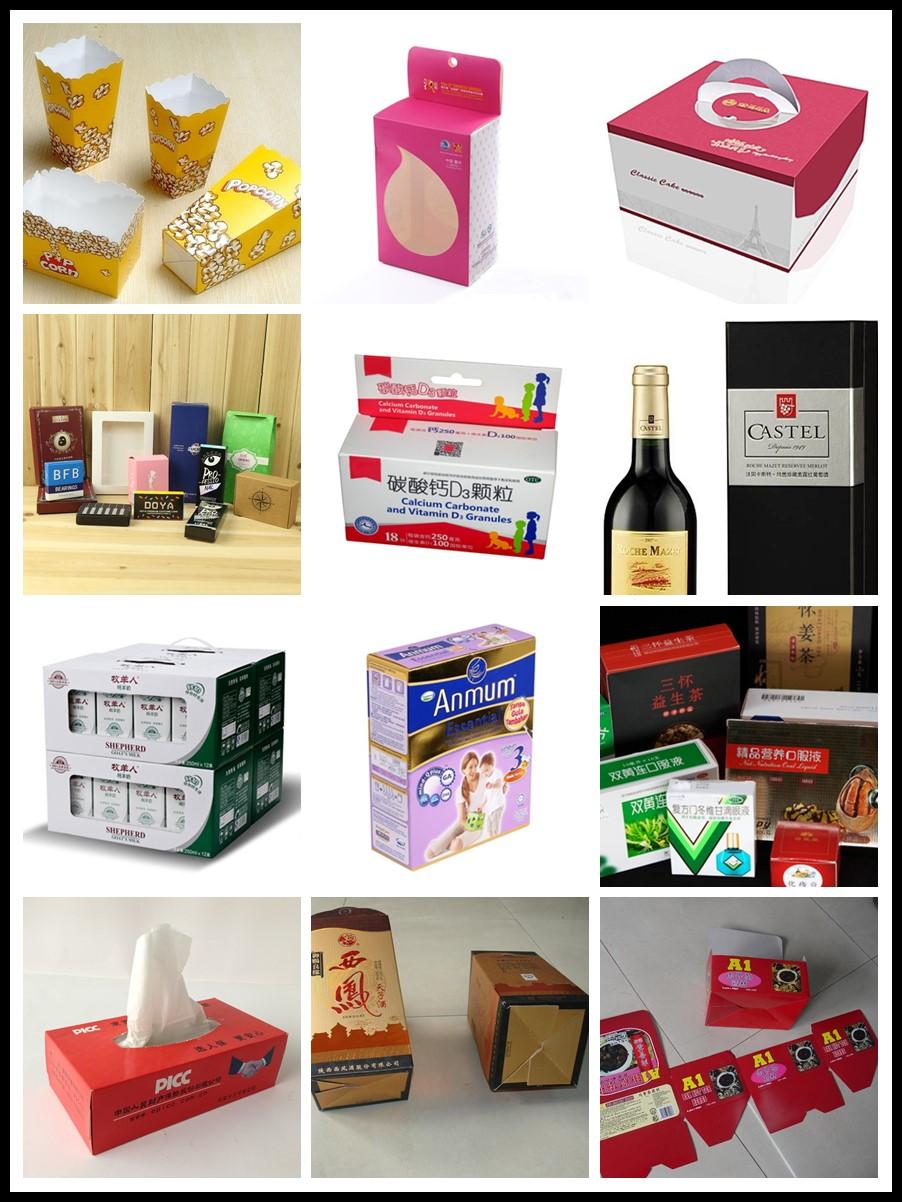

Samples
