SHH-AG
Series Pre-fold Lock Bottom Automatic Folder Gluer
SHH-800AG,
SHH-600AG
This
machine is specially used for paperboard shaping and adhesive
processing after cutting horizontally. Its universality is strong and
suitable scope is wide, which can fold and paste various straight
seaming box and bottom edging box.
It
is widely used in food, medicine, cosmetics, stationery and other
ordinary cartons, process and glue for all kinds of bottom-locked
cartons.Pre-fold
section is applied to auto packaging, fold 1 and fold 3 of
all cartons can reach 180° and 135°，perfectly
combing the requirements of auto packaging together.
Characteristics
|
Model
|
SHH-800AG,
SHH-600AG
|
|
Paper
Material
|
200-800
gsm cardboard and E, F flute.
|
|
Max.
Liner speed
|
220m/min
|
|
Feeding
Way
|
Automatically
and continuously feeding.
|
|
Way
of Folding in reverse
|
Fold
1 and fold 3 are 180゜
and
135゜.
Fold
2 and fold 4 are 180゜.
|
|
Glue
Material
|
Water-base
cold glue.
|
|
Electric
Power
|
3P
380V 50Hz
|
|
Main
Power
|
7.5kW
|
|
Weight
|
3200kgs,
3000kgs
|
|
Over
Dimension
|
11x1.3x1.4m,
11x1.1x1.4m
|
Technical
Parameter
|
Model
|
SHH-600AG
|
SHH-800Ag
|
|
Material
|
Carboard
|
Carboard
|
Corrugated
Paper
|
|
A+B+C+D
|
200-550mm
|
200-750mm
|
200-750mm
|
|
C+D
Min.
|
100mm
|
100mm
|
100mm
|
|
D
Min.
|
25mm
|
25mm
|
25mm
|
|
F
Min.
|
70mm
|
70mm
|
70mm
|
|
G
|
150-600mm
|
150-600mm
|
150-580mm
|
|
H
|
25mm
|
25mm
|
25m
|
|
Model
|
SHH-600AG
|
SHH-800Ag
|
|
Material
|
Carboard
|
Carboard
|
Corrugated
Paper
|
|
A+B+C+D
|
100-580mm
|
150-780mm
|
180-680mm
|
|
C+D
Min.
|
50mm
|
75mm
|
90mm
|
|
D
Min.
|
8mm
|
8mm
|
8mm
|
|
F
Min.
|
50mm
|
50mm
|
50mm
|
|
G
|
70-700mm
|
70-700mm
|
150-580mm
|
Feature Introduction:

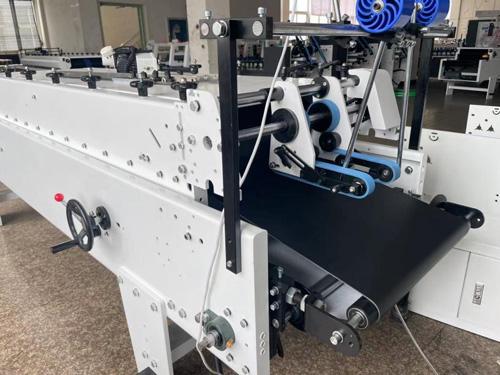

Feeding
Adjustable
feeding belts to ensure easy adjustment, stable and smoothly feeding.
Continuously
Variable Speeder to ensure feeding internal and stable transmission.
One-touch
Pneumatic knife, easy for the adjustment of feeding belts.
Pre-fold
Double-board
structure with a set of pre-folding knife.
Pre-fold
angle is 180°and 135°, especially suitable for small but high
cartons, more satisfactory while rapid prototyping
Bottom-lock
3-board
tracking structure, upper gluer can make bottom-locked box automatic
gluing and forming, can be used for the special-shaped cartons.
The
entire bottom-lock part is installed in a reversible bracket,
substantially reduce the swap adjustment time of bottom-fold box and
the other types of box.
Bottom-folding
speed is 50-200 pcs per min, stable and reliable.
Folding
Lengthened
folding to avoid the unevenness while the rapid forming of cartons
and make it come to perfection.
Full
pressing
With
counting device to count the finished boxes to match with boxes
regulating, easy to count and pack.
Transmission
Equipped
with feeding paper inspection device.
Equipped
with impacting device to press the paper
after
accounting and make it easy to pack paper.
The
Grinding part
More
effective treatment of paper surface UV, the carton adhesive more
strong.
